Product Category

In-Mould Label Film

 Mainly applied to injection molding products, it can be labeled directly with plastic in moulding process.

Main Characteristic:

  1. 1. Laminate on the injection molding products without adhesion；
  2. 2. Easily to be sorted by the manipulator and suitable for automatic operation；
  3. 3. Instant high-temperature resistance, which can prevent label damage at injection port；
  4. 4. Achieve the extraordinary Orange Peel effect after labeling.(75HM)；
  5. 5. Keep the smooth effect after labeling.(45HGM)

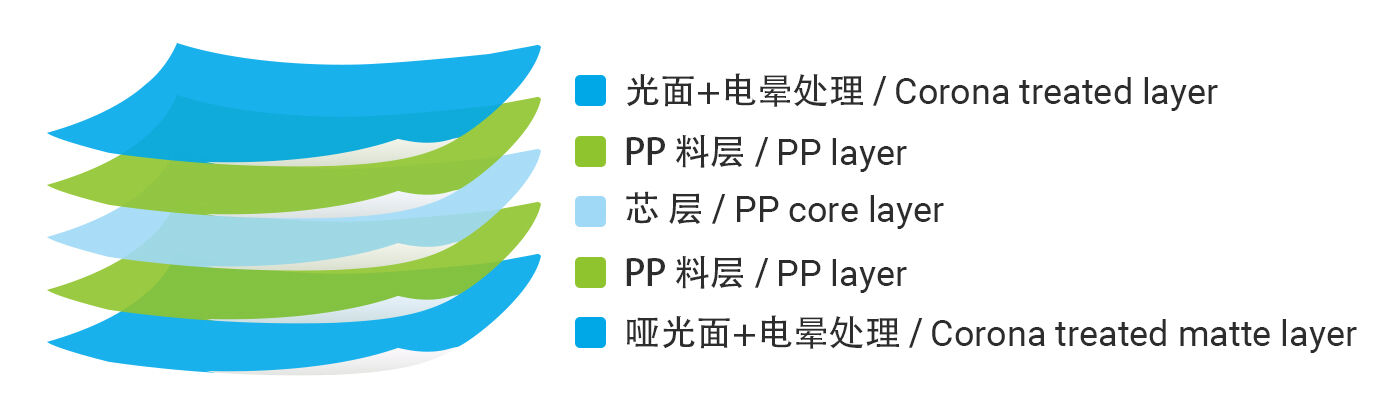

Structure：

Photo：

Main Properties：

Product Code 　 75HGMU 65HMU 　
Item Unit Value Testing Standard
Thickness μm 75 65 GB/T 6672
Thickness tolerance % ±3 ±3 GB/T 6672
Density  g/cm3 0.91±0.02 0.65±0.02 /
Grammage g/cm2 68.25±1.00 42.25±1.00 /
Tensile strength  MD Mpa ≥50 ≥50 GB/T 13022
TD ≥100 ≥100
Heat shrinkage MD % ≤3.0 ≤3.0 BB/T 0002-2008
TD ≤0.5 ≤0.5
Blue-ray Whiteness % ≥75 ≥75 GB/T 22879-2008
Opacity % ≥70 ≥75 GB/T2410-2008
Wetting tension  Plain side mN/m ≥40 ≥40 GB/T 14216
Matt side ≥38 ≥38



*The above data are typical values;

Special requirement on request

Manufacturing Facilities：
