Product Category

Heat Sealable Film

Applicable to the packaging of ordinary food and daily necessities. The single side heat sealable  film is used for independent packaging of small piece products after printing, and also suitable for vertical or horizontal packaging. The double sides heat sealable are used for independent packaging with a high speed after printing.

Main Characteristic:

  1. 1. Broad heat sealing range;
  2. 2. High sealing strength;
  3. 3. Low haze;
  4. 4. Excellent slippery;
  5. 5. High stiffness;

6. Quick heat sealing property.

Structure：

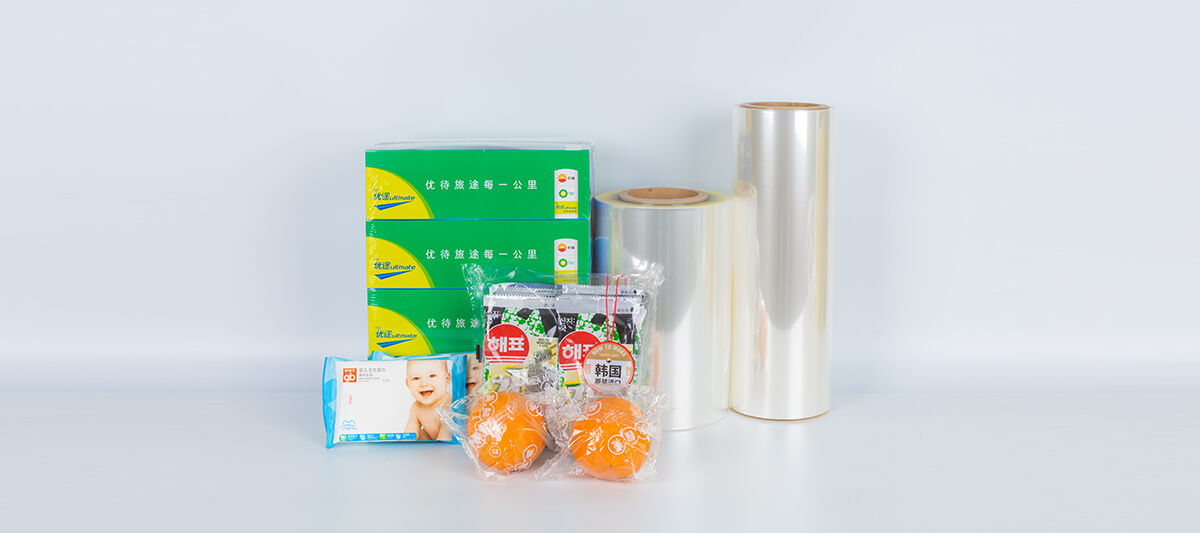

Photo：

Main Properties：

Product Code 25PS/30PS/35PS
Item Unit Value Testing Standard
Thickness tolerance % ±3 GB/T 6672
Average thickness tolerance % ±6 GB/T 6672
Tensile strength MD Mpa ≥120 GB/T 13022
TD ≥200
Elongation at break MD % ≤160 GB/T 13022
TD ≤80
Heat shrinkage MD % ≤4.5 GB/T 12027
TD ≤3.0
Coefficient of friction(Non-treatment side/Non-treatment side) / ≤0.6 GB/T 10006
Wetting tension mN/m ≥38 GB/T 14216
Heat sealing strength  N/15mm ≥2.0 QB/T 2358
Gloss % ≥85 GB/T 8807
Haze  % ≤2.5 GB/T 2410
Water vapor transmission rate g/(m2·24h·0.1mm) ≤2 GB/T 1037



*The above data are typical values;

Special requirement on request
