Product Category

Anti-fog Film

Broadly used in packing vegetables and fruits that need to be refrigerated.

Main Characteristic:

  1. 1. High gloss and transparency;
  2. 2. Few visible white spots ;
  3. 3. High stiffness;
  4. 4. Excellent printing and laminating properties ;

5. Outstanding anti-fog function

Structure：

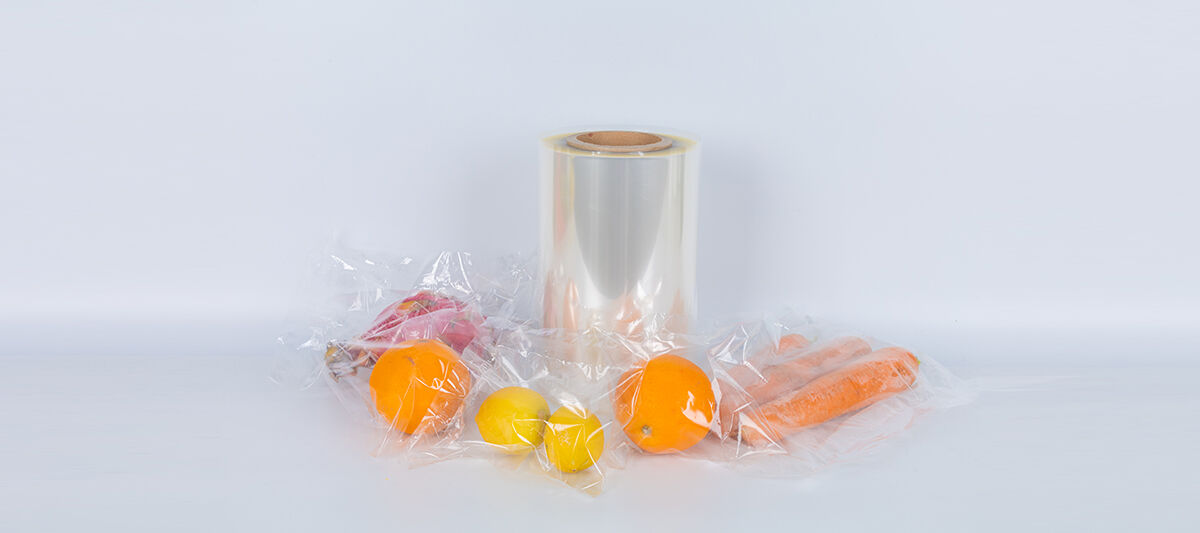

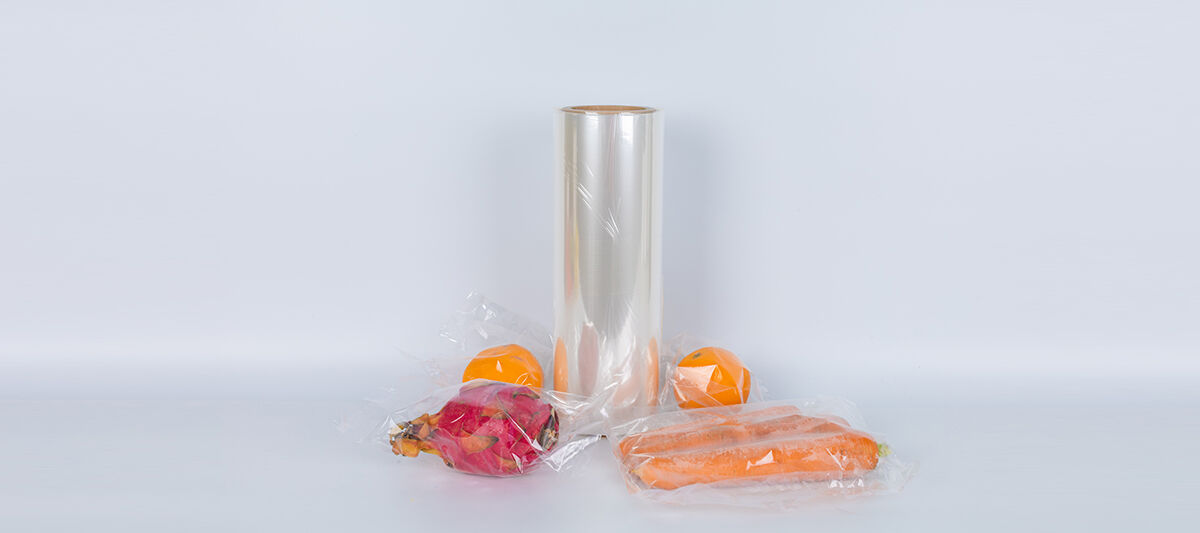

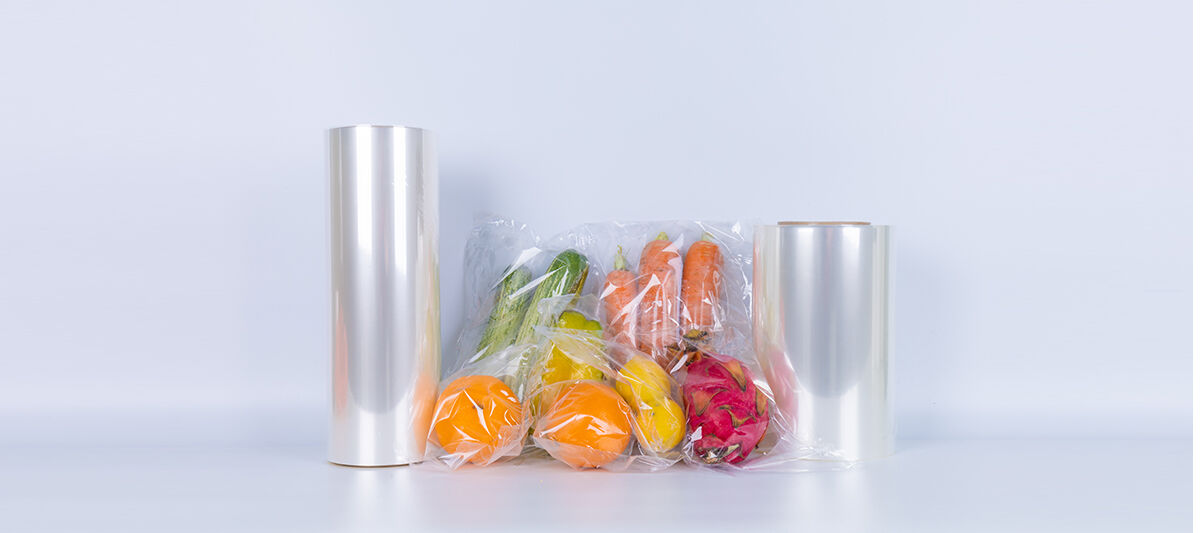

Photo：

Main Properties：

Product Code 15PF/18PF/19PF/20PF/24PF/25PF/27PF
18/19/22/23/24/25/27/30/31/32/34/35/36/37/40/42/43/45/46/47 PB
Item Unit Value Testing Standard
Thickness tolerance % ±3 GB/T 6672
Average thickness tolerance % ±6 GB/T 6672
Tensile strength MD Mpa ≥120 GB/T 13022
TD ≥200
Elongation at break MD % ≤180 GB/T 13022
TD ≤65
Heat shrinkage MD % ≤4.0 GB/T 12027
TD ≤2.5
Coefficient of friction(Non-treatment side/Non-treatment side) / ≤0.6 GB/T 10006
Wetting tension mN/m ≥38 GB/T 14216
Gloss % ≥90 GB/T 8807
Haze  % ≤1.5 GB/T 2410
Charge decay time (Bagmaking film) s ≤10 GB/T 14447
Water vapor transmission rate g/(m2·24h·0.1mm) ≤2 GB/T 1037



*The above data are typical values;

Special requirement on request
