Synthetic Paper Film for Adhesive Label
As a substrate for adhesive label, the synthetic paper film for adhesive label is broadly used in daily necessities like electronics, foodstuffs, beverages.
Main Characteristic:
1. Excellent coating performance;
2. Good adhesivion between layers.
3. Without visible convex-concave point.

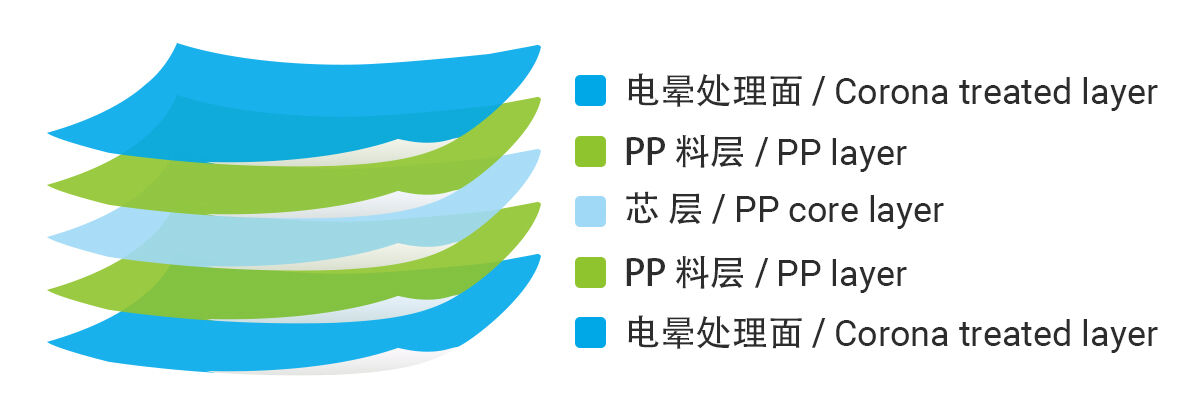

Structure:

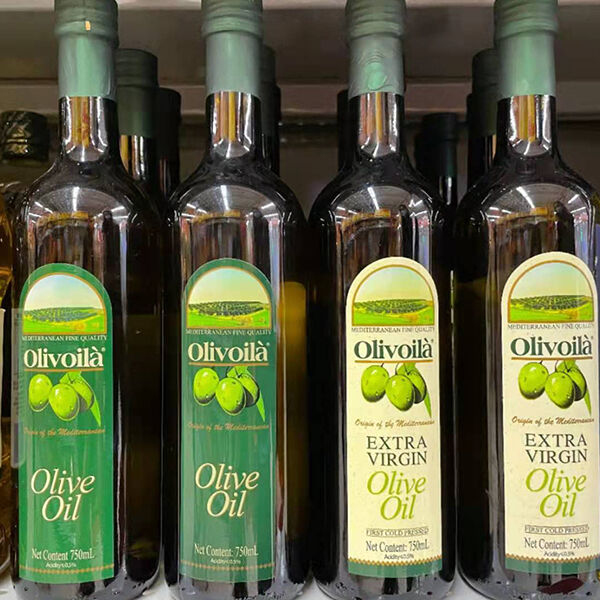

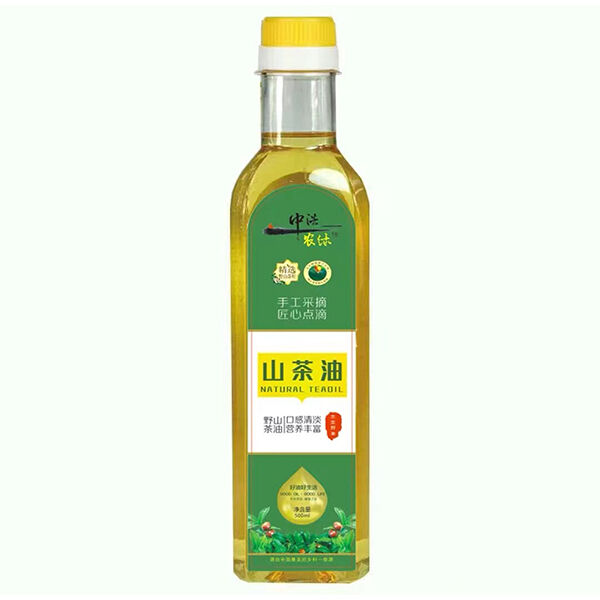

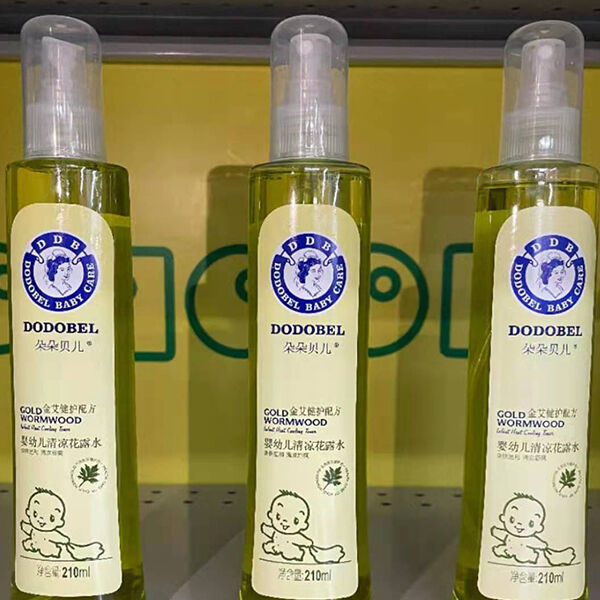

Photo:
Main Properties:
Product Code | 48AS | 68AS | 68AQ | 168A | |||
Item | Unit | Value | Testing Standard | ||||
Thickness | μm | 48 | 68 | 68 | 168 | / | |
Thickness tolerance | % | ±3 | ±3 | ±3 | ±3 | GB/T 6672 | |
Density | g/cm3 | 0.78±0.02 | 0.70±0.02 | 0.74±0.02 | 0.62±0.02 | / | |
Grammage | g/cm2 | 37.44±0.80 | 47.60±1.00 | 50.32±1.00 | 104.16±2.00 | / | |
Tensile strength | MD | Mpa | ≥50 | ≥50 | ≥50 | ≥45 | GB/T 13022 |
TD | ≥100 | ≥100 | ≥100 | ≥100 | |||
Heat shrinkage | MD | % | ≤3 | ≤3 | ≤3 | ≤3 | BB/T 0002-2008 |
TD | ≤0.5 | ≤0.5 | ≤0.5 | ≤0.5 | |||
Blue-ray Whiteness | % | ≥75 | ≥75 | ≥80 | ≥70 | GB/T 22879-2008 | |
Opacity | % | ≥75 | ≥75 | ≥80 | ≥70 | GB/T 2410-2008 | |
Wetting tension | Coating side | mN/m | ≥38 | ≥38 | ≥38 | ≥38 | GB/T 14216 |
*The above data are typical values;
Special requirement on request
